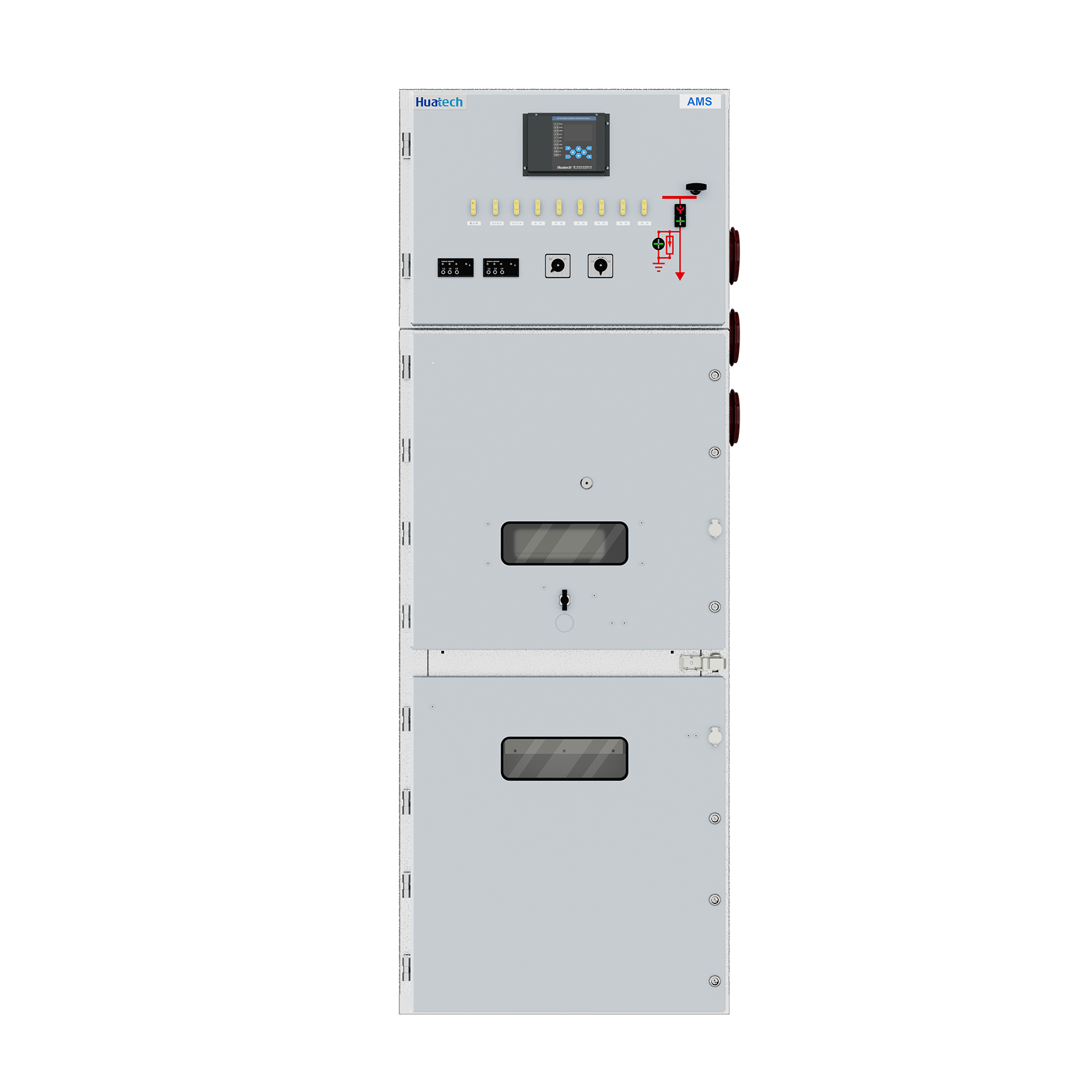

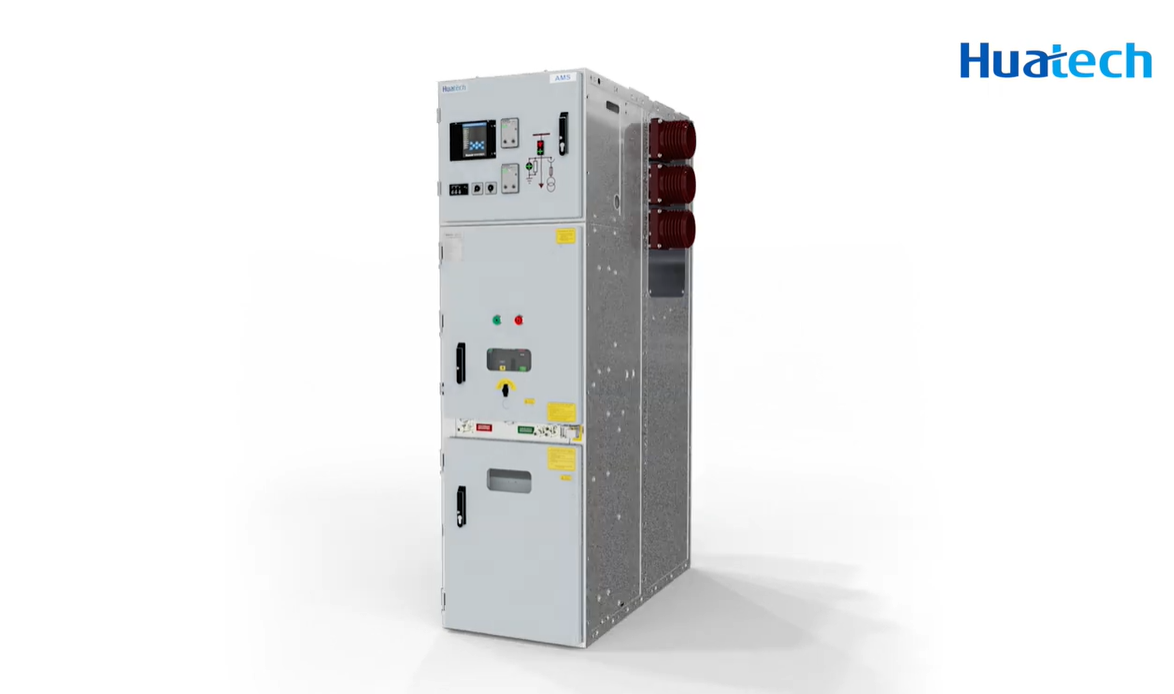

AMS Metal-clad Switchgear

Description

The AMS is a metal-clad, air-insulated, indoor switchgear that complies with lEC, GB(ChinaNational Standard), DL(China Electric Power Industry Standard), and DlN standards. it hasa rated voltage ranging from 3.6kV to 40.5kV and a rated current of up to 5000A.

Features

• Designed to be centrally installed, equipped with VEP indoor medium-voltage embedded pole vacuum circuit breaker.
• Intelligent solutions customized, such as wireless temperature monitoring, VCB condition monitoring and displaying,motorized VCB rack in and out, motorized earth switch etc.
• Nuclear 1E level.

Technical parameter

• Rated voltage：12kV/17.5kV/24kV/40.5kV
• Rated current：up to 4000A/up to 4000A/up to 3150A
• Rated short-circuit breaking current：up to 50kA/ up to 40kA /up to 31.5kA
• Panel width：550mm to 1680mm
• IAC：AFLR up to 50kA/1s
